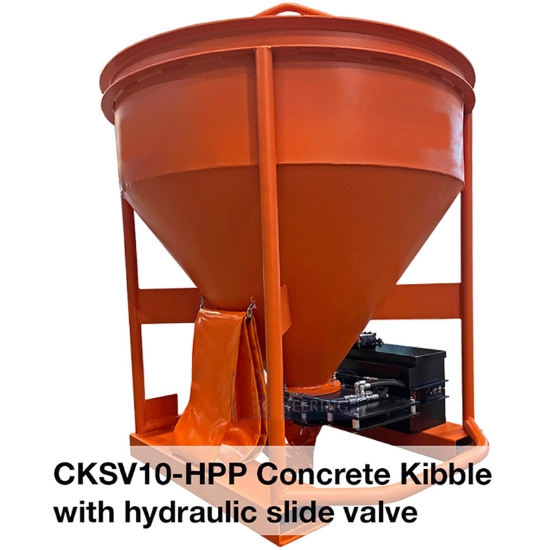

Concrete Kibble Hydraulic Slide Valve - Volume Capacity 1.0 cubic metres

This Concrete Kibble is designed for the easy transfer of concrete or similar materials on-site by overhead crane.

Part No: EW-CKH10-HPP

Shipping Charges (Note: Must have forklift available for delivery) *

$10,680.00 excl GST

Concrete Kibble Hydraulic Slide Valve - Volume Capacity 1.0 cubic metres

This Concrete Kibble is designed for the easy transfer of concrete or similar materials on-site by overhead crane.

Featues:

Hydraulic unit allowing remote control of kibble
Suits use with concrete and other materials
Ideal for filling wall cavities, columns and other confined spaces
Lever actuated slide valve allows operator to regulate concrete flow
200mm diameter slide valve allows precise control over the concrete flow
1.5m long, 200mm diameter Lay Flat hose fitted
Fork pockets and crane lugs fitted for transport around the work site
Smooth interior allows easy discharge and fast cleaning
Enamel paint finish

Specifications:

Working Load Limit (WLL) : 3000kg
Capacity : 1.0 cu.m
Transport Dimensions : 1505 x 1445 x 1870mm
Fork Pocket Size : 185 x 60mm
Fork Pocket Centres : 870mm
Unit Weight : 295kg
